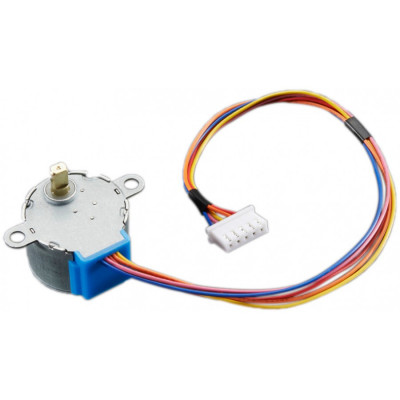

Stepper Motor 28BYJ-48
Electro-Mechanics • Motor

This 12V DC 28BYJ-48 Stepper Motor is a small, inexpensive, and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system. The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor that has 5-wires.

Available Quantity : 20
Package :

Unipolar

N20 3V 150RPM Micro Metal Gear DC Motor With Encoder
Electro-Mechanics • Motor

These N20 3V 150RPM Micro Metal Gear DC Motor With Encoder is intended for use at 3V. Though in general, these kinds of motors can run at voltages above and below this nominal voltage; so they should comfortably operate till the 3V (rotation can start at voltages as low as 0.5 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor. The micro metal gear motors are available in a wide range of gear ratios—from 5:1 up to 1000:1. With the exception of 1000:1 gear ratio versions, all of the micro metal gear motors have the same physical dimensions; so one version can be easily swapped for another if your design requirements change.

Available Quantity : 4
Package :

encoder motor

300 RPM BO Motor-Straight
Electro-Mechanics • Motor

This is a 300 RPM BO Motor-Straight. Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement. This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors.

Available Quantity : 20
Package :

motor

Micro Limit Switch
Electro-Mechanics • Switch

General Purpose Limit Switches

Available Quantity : 4
Package :

THT Micro

Servo Motor
Electro-Mechanics • Motor

Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor

Available Quantity : 4
Package :

RC Servo Metal Gear Servo

Micro Limit Switch
Electro-Mechanics • Switch

1A 125V AC

Available Quantity : 22
Package :

Switch limit

Nema 23 Bipolar 1.8deg 1.2Nm
Electro-Mechanics • Stepper Motors

This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x56mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.2Nm(169.93oz.in). Electrical Specification Manufacturer Part Number: 23HS22-2804S Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 1.2Nm(169.93oz.in) Rated Current/phase: 2.8A Phase Resistance: 0.9ohms Inductance: 2.5mH±20%(1KHz) Insulation Class: B 130°C[266°F] Physical Specification Frame Size: 57 x 57mm Body Length: 56mm Shaft Diameter: Φ6.35mm Shaft Length: 21mm Number of Leads: 4 Lead Length: 500mm Weight: 700g

Available Quantity : 1
Package :

openloop stepper motors nema23

nema 11
Electro-Mechanics • Stepper Motors

This bipolar nema 11 stepper motor with step angle 1.8deg and size 28x28x51mm. It has 4 wires, each phase draws 0.67A at 6.2V, with holding torque 12Ncm(16.99oz.in). Planetary Gearbox is available for this model. Electrical Specification Manufacturer Part Number: 11HS20-0674S Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 12Ncm(16.99oz.in) Rated Current/phase: 0.67A Phase Resistance: 9.2ohms Inductance: 5.7mH±20%(1KHz) Insulation Class: B 130°C[266°F] Physical Specification Frame Size: 28 x 28mm Body Length: 51mm Shaft Diameter: Φ5mm Shaft Length: 20mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 500mm Weight: 190g

Available Quantity : 2
Package :

openloop motors steppers nema11

Nema 8 Bipolar 1.8deg 4Ncm
Electro-Mechanics • Stepper Motors

This nema 8 stepper motor with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A at 6.0V, with holding torque 4Ncm(5.7oz.in). Electrical Specification Manufacturer Part Number: 8HS15-0604S Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 4Ncm(5.7oz.in) Rated Current/phase: 0.6A Phase Resistance: 11ohms Inductance: 5.5mH±20%(1KHz) Insulation Class: B 130°C[266°F] Physical Specification Frame Size: 20 x 20mm Body Length: 38mm Shaft Shape: D-cut Shaft Diameter: Φ4mm Shaft Length: 10mm D-cut Length: 7mm Number of Leads: 4 Lead Length: 300mm Weight: 80g

Available Quantity : 2
Package :

stepper motors nema 8

MG90S Micro Servo Motor – 180° Rotation
Electro-Mechanics • Servo-Motors

he MG90S Micro Servo Motor is 180° rotation servo. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists. They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too. Wire Description:- RED – Positive Brown – Negative Orange – Signal https://www.ktron.in/product/mg90s-micro-servo-motor-180-rotation/?v=c86ee0d9d7ed

Available Quantity : 3
Package : MG90S

Servo
