MPU-6050 3-Axis Accelerometer and Gyro Sensor
Electronics • Sensors

The MPU6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms.

Available Quantity : 5
Package :

IMU Magnetometer & Gyroscope Accelerometer

WS2812B Mini RGB SMD LED – SMD3535 – 4 pin
Electronics • Sensors

WS2812B Mini RGB SMD LED is an intelligent control LED light source that the control circuit and RGB chip integrated in a package of 3535 component. Its’ internals include intelligent digital port data latch and signal reshaping amplification drive circuit. It also includes a high-precision internal oscillator and a programmable constant current control part to ensure high color consistency. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal reduces by 24bit. The pixels adopt auto reshaping transmit technology, making the pixel cascade number not limited to the signal transmission, and only makes it dependent on the speed. https://www.ktron.in/product/ws2812b-mini-smd-3535-4-pin/

Available Quantity : 200
Package : SMD3535

smd LED neopixel led Addressable LED neopixel

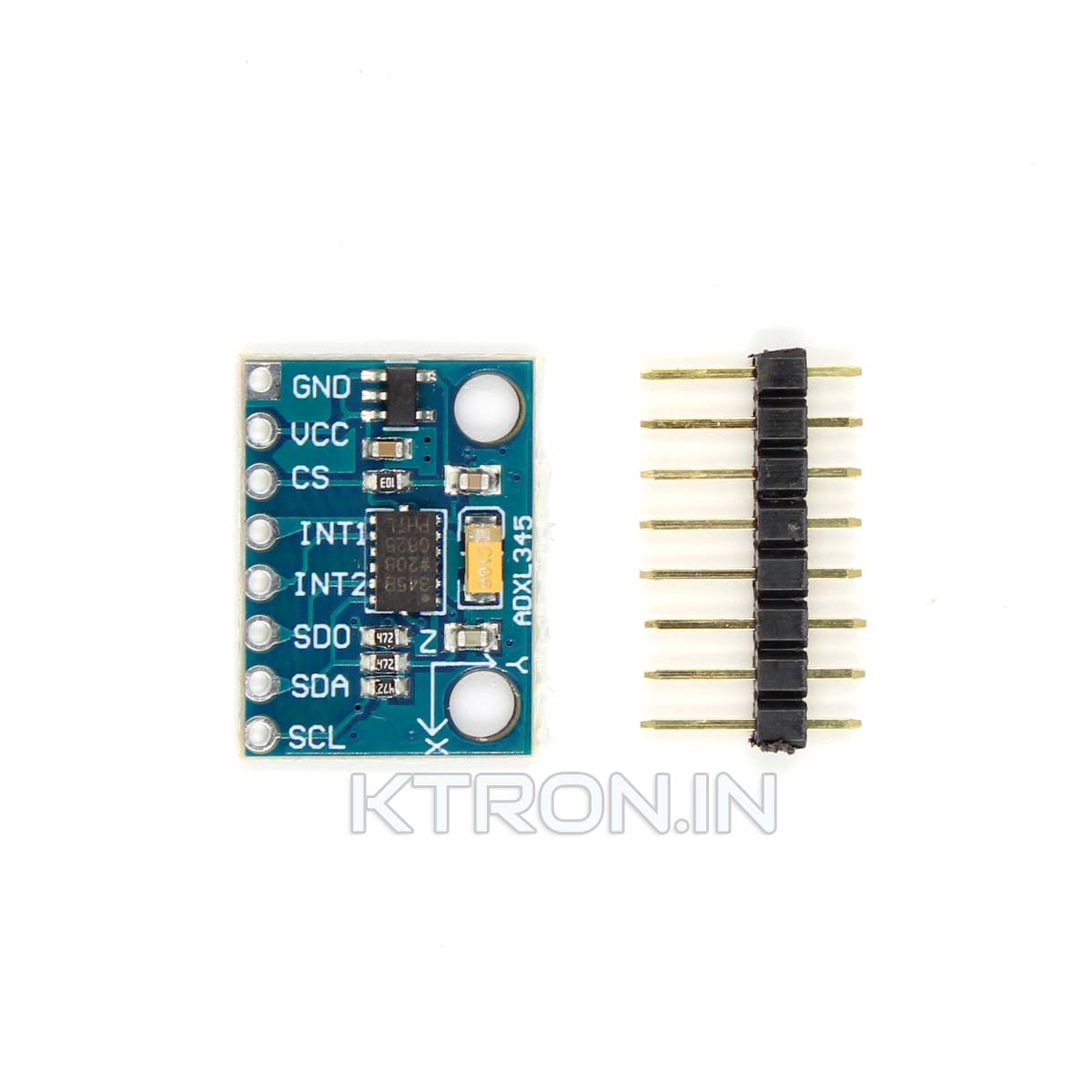

Triple Axis Accelerometer Module
Electronics • Sensors

This ADXL345 Triple axis accelerometer module is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. Digital output data is format as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface.

Available Quantity : 5
Package :

sensor module

INMP441 MEMS High Precision Omnidirectional Microphone Module
Electronics • Sensors

The INMP441 is a high-performance, low-power, digital output, omnidirectional MEMS microphone with a bottom port. The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management, and industry-standard 24-bit I2S interface. The I2S interface allows the INMP441 to be directly connected to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system. The INMP441 has a high signal-to-noise ratio and is an excellent choice for near-field applications. The INMP441 has a flat wideband frequency response that results in a high definition of natural sound.

Available Quantity : 5
Package :

sensor module

Hall-Effect Magnetic Position Sensor
Electronics • Sensors

The MT8111ET - Hall-Effect Magnetic Position Sensor Unipolar 110Gs 3Pin SOT-23 (Thin) is produced by BCD technology with both high performance and high reliability. The Hall IC internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltage of 2.8V to 24V, a smallsignal amplifier, Hall sensors with dynamic offset cancellation, a schmitt trigger and an open-drain output with over-current protection. It features temperature compensation technique to make the magnetic switching points stable over a wide temperature range.

Available Quantity : 7
Package :

smd sensor

Pressure sensor
Electronics • Sensors

Pressure Sensor 5.37PSI (37kPa) Vented Gauge Male - 0.1" (2.59mm) Tube 0 mV ~ 31 mV 6-SMD Module

Available Quantity : 5
Package :

sensor module

BMX160 9-axis Sensor
Electronics • Sensors

DFRobot Fermion BMX160 9-axis Sensor (Breakout)

Available Quantity : 4
Package :

9-axis Sensor BMX160

Rotary Encoder
Electronics • Sensors

M274 360 Degree Rotary Encoder Brick Sensor Module

Available Quantity : 9
Package : ----

encoder

RFID Reader Kit
Electronics • Sensors

RC522 RFID Reader / Writer 13.56 Mhz Module Kit, Card Reading / Writing Distance: >= 50 mm, Operating Voltage: 3.3V

Available Quantity : 3
Package :

RFID
