The DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver. The module has a pinout and interface that are nearly identical to those of the A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 features adjustable current limiting, overcurrent, and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling). Img 0849 Note: We are supplying two DRV8825 Drivers as DRV8825 Stepper Motor Driver with Aluminum Heat Sink- Good Quality and DRV8825 Stepper Motor Driver with Aluminum Heat Sink- Normal Quality. The difference between them is, the good quality DRV8825 has more number of PCB layers and it features the connecting pins which are of gold plated as compared to other. (refer to above image) Using the Driver Wiring Diagram For Drv8825 Stepper Motor Driver Features : Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32. Simple step and direction control interface Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay) 45 V maximum supply voltage Built-in regulator (no external logic voltage supply needed) Can interface directly with 3.3 V and 5 V systems Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout Short-to-ground and shorted-load protection 4-layer, 2 oz copper PCB for improved heat dissipation Exposed solderable ground pad below the driver IC on the bottom of the PCB Package Includes : 1 x DRV8825 Stepper Motor Driver with Aluminum Heat Sink- Good Quality. https://robu.in/product/drv8825-stepper-motor-driver-aluminum-heat-sink-good-quality/

Available Quantity : 18
Package : soldered module

N-Channel 30 V 1.7A (Ta) 350mW (Ta) Surface Mount SC-70-3 https://www.digikey.in/en/products/detail/alpha-omega-semiconductor-inc/AO7400/1855856

Available Quantity : 90
Package : SC-70, SOT-323

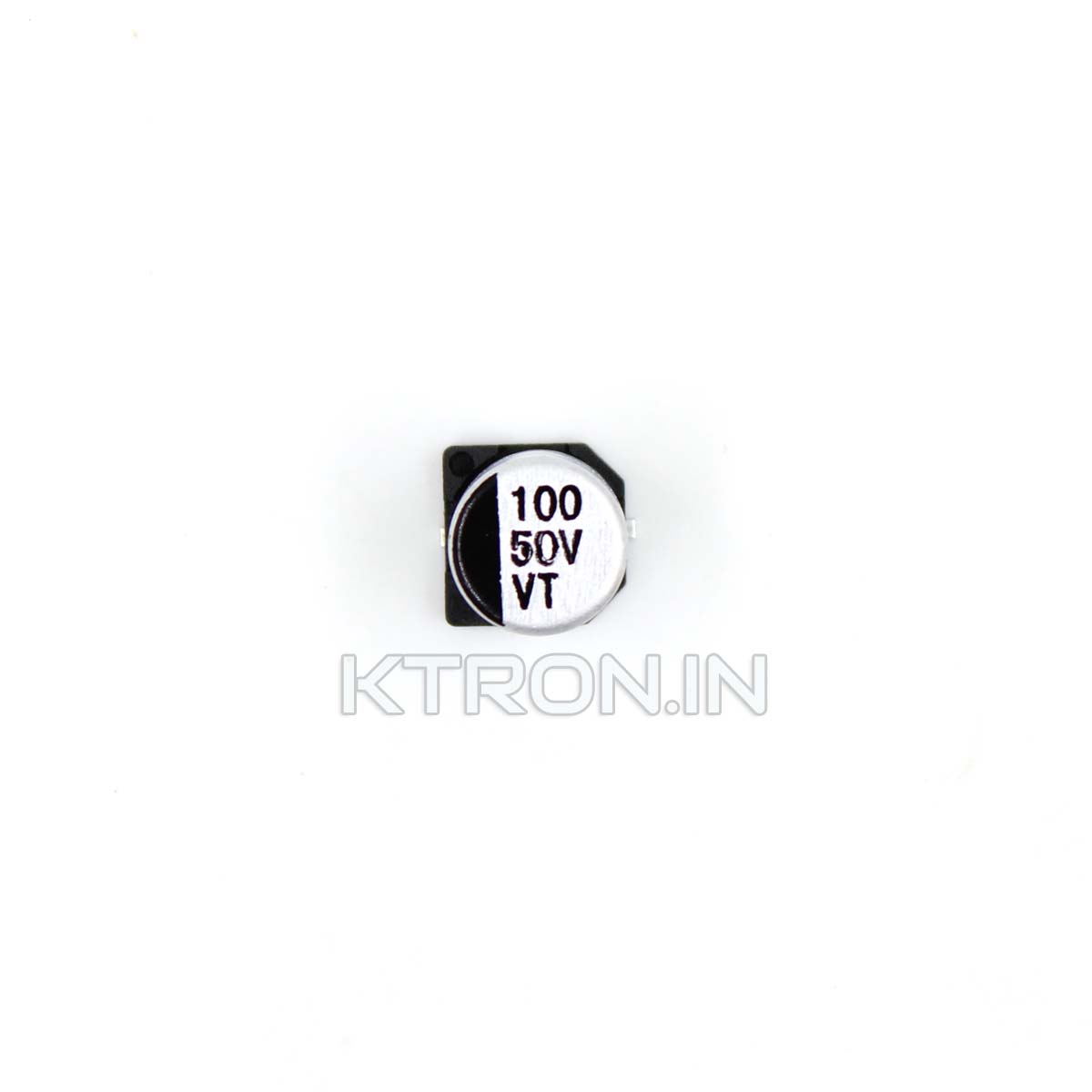

It is a 100uF 50V SMD Electrolytic Capacitor or Surface Mount chip Aluminum Electrolytic Capacitor. The capacitor contains an insulator between relative conductors in an electrode. It has a diameter of 8 mm with height of 10.5mm.

Available Quantity : 17
Package :

4 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Tin https://www.digikey.in/en/products/detail/sullins-connector-solutions/NPTC041KFXC-RC/776054

Available Quantity : 16
Package : 2.54 mm SMD

Features For OLED-SSD1306, a more elaborate and beautiful screen than LCD, with more functions High contrast, thus supporting clear display With no need of backlight Working voltage: 2.7V - 5.5V; PCB size: 2.8 x 3.2cm Standard double-sided printed circuit board, 1.16mm thick, with an elegant layout, 3 mm holes at two corners for easy fixing Low power consumption: 0.04W during normal operation

Available Quantity : 10
Package : soldered module

Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3 https://www.digikey.in/en/products/detail/texas-instruments/LM3480IM3-5-0/3701424

Available Quantity : 37
Package : SOT23-3

Technical data： Wire range：22-12AWG 2.5mm² Voltage&Current：300V 10A Torque：0.4N.m Withstand Voltage：AC2000V 60s Environment： Operating Temperature：-40℃ ~ +105℃ Pollution Level：Ⅲ Inspection standards： GBT 2828.1-2012 Use： Wire Stripping Lenght：5-6±0.5mm Wave Soldering：260℃/5s Hand Soldering：soldering iron350℃/10s https://www.sunrom.com/p/2p-5mm-10a-screw-terminal-heavy

Available Quantity : 27
Package : 5.08 mm

Motor Driver DMOS Parallel 8-SOIC-EP https://www.digikey.in/en/products/detail/allegro-microsystems/A4953ELJTR-T/2765624?s=N4IgTCBcDaIIYBYCcBWAzCAugXyA

Available Quantity : 36
Package : 8-SOIC

DC Power Connectors Power Jacks https://www.mouser.in/ProductDetail/CUI-Devices/PJ1-023-SMT-TR?qs=sGAEpiMZZMv1TUPJeFpwbqPioV%2FJqV42Y1XsdGpyyvdWZDwhOjDLZg%3D%3D

Available Quantity : 85
Package :

General Purpose Limit Switches

Available Quantity : 4
Package :

This is 100uF 50V Multi Layered Ceramic Capacitor in SMD 1206 Package. It has X7R as dielectric, which makes up a highly stable capacitor. It has tolerance of 10% only. https://www.ktron.in/product/100uf-50v-multi-layered-ceramic-capacitor/ Multi Layered Ceramic Capacitor Max Voltage: 50V Capacitance: 100uF Tolerance: 10% Dielectric: X7R Manufacturer : Generic

Available Quantity : 21
Package : 1206

https://github.com/saheenpalayi/ProshPlay-Type_C-Breakout_Board

Available Quantity : 24
Package :

LM8UU 8 MM Linear Motion Bearing

Available Quantity : 11
Package :

Available Quantity : 5
Package :

These 40 pin berg header strips can be used for connecting peripheral assemblies with a PCB or for interconnecting PCBs. These pin headers are stiff metallic PCB mount header, Vertical, Board-to-Board connectors that are soldered to a circuit board and stick up to receive a connection from a female socket. The 40 pin headers are straight, vertical and reflow solderable with an SMT-capable surface mount style.

Available Quantity : 2000
Package :
